Monochrome Waist Level Camera Kit with Sensor

Production time is 4-6 weeks when out of stock

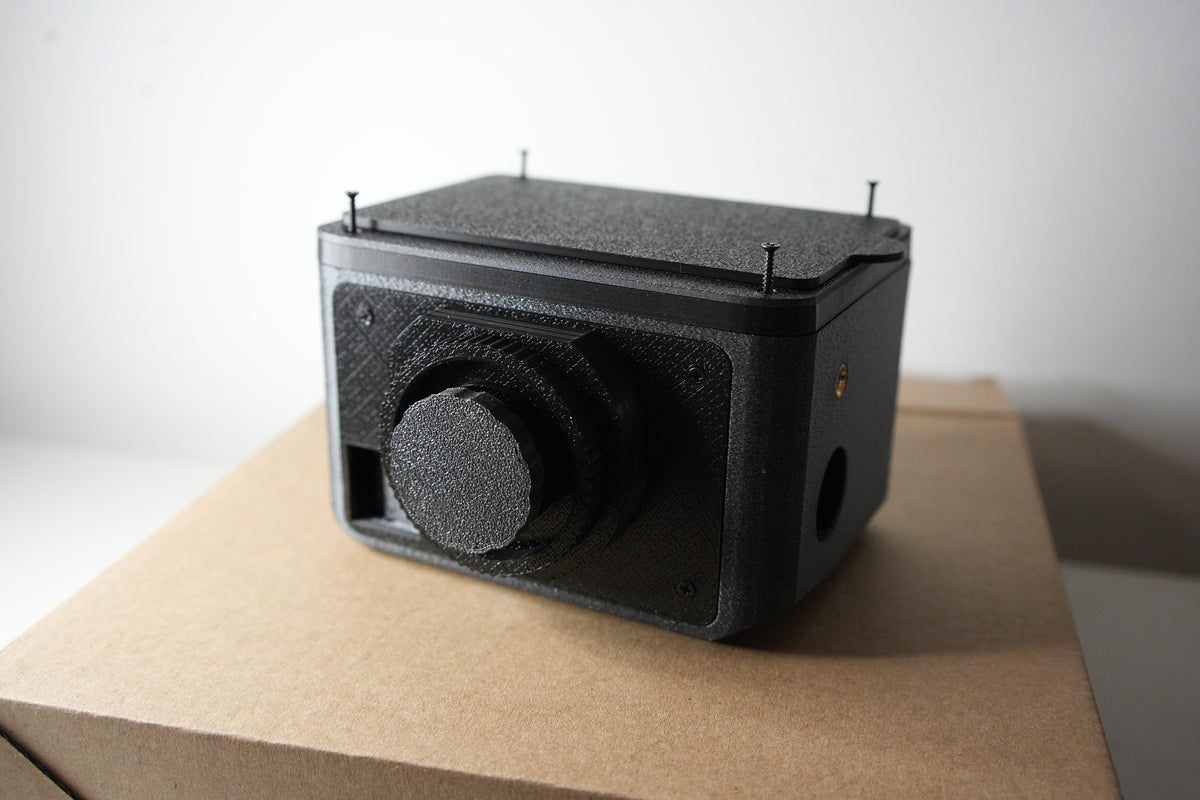

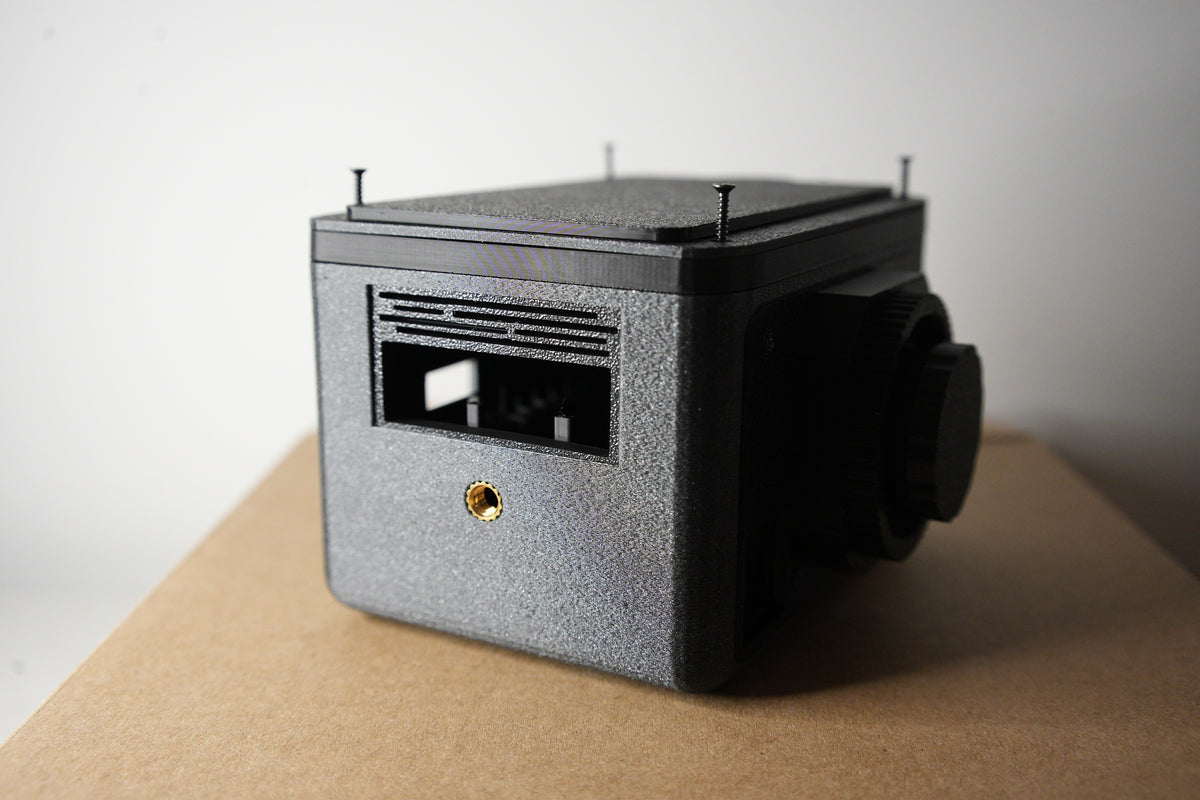

Full Spectrum Monochrome Camera – WLV-01 Build Kit

Build it. Customize it. Make it yours.

This kit gives you everything you need to build your own full spectrum monochrome camera — using the same core system found in our flagship model.

It’s designed for photographers, hardware enthusiasts, and makers who want more than a finished product.

Powered by the IMX585 monochrome sensor, this camera captures true black and white images with exceptional clarity and tonality.

You bring your own Raspberry Pi and display. We provide the parts that are difficult to source, difficult to manufacture, and essential to making the system work reliably.

If you’ve ever wanted to create a camera that is uniquely your own, this is where it starts.

Sample Images

What’s Included

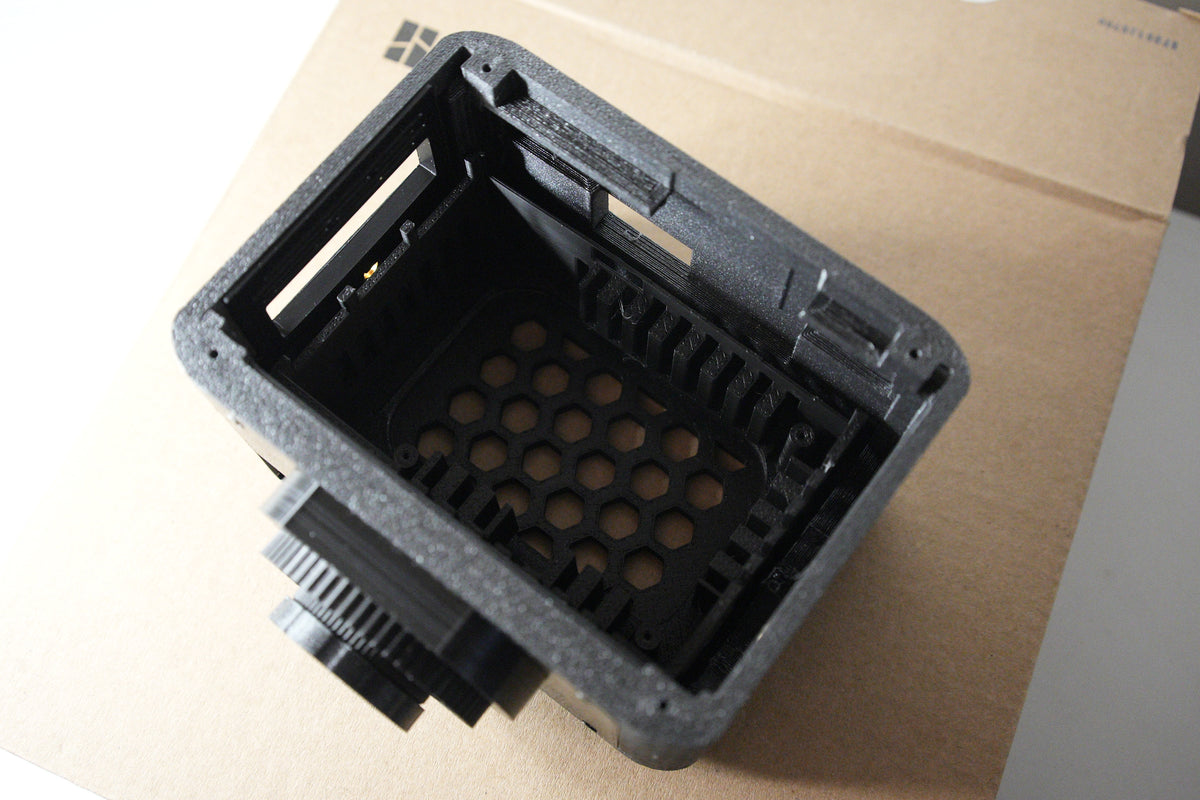

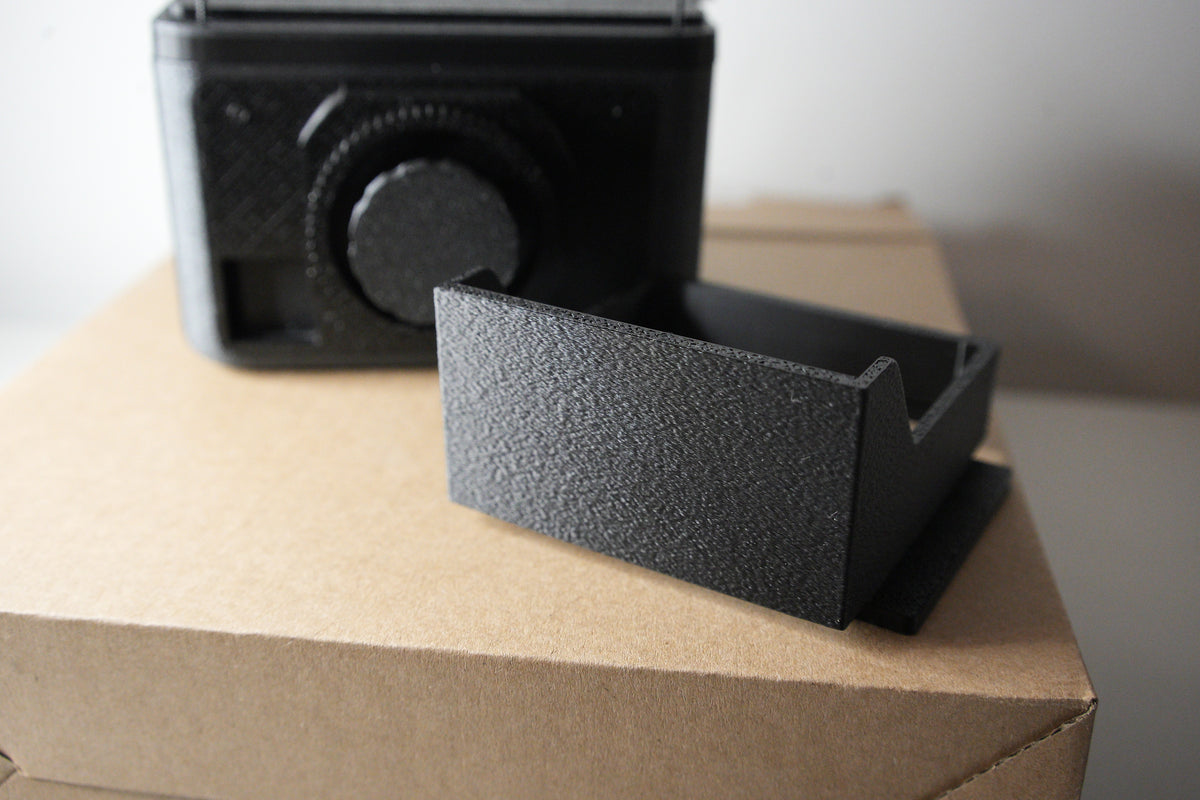

• 3D printed camera body components
  Designed for easy assembly, durability, and future upgrades

• Sony IMX585 full-spectrum monochrome sensor
  Exceptional sensitivity from visible light through near-infrared

• Complete hardware kit
  Screws, mounts, threaded inserts, and required cables

• Pre-configured camera software image
  Fully optimized for monochrome capture and creative workflows

• Assembly guide and online support
  Build at your own pace with clear, step-by-step guidance

What You’ll Need to Add

• Raspberry Pi 5

• Display module

• C-mount lens or adapted M42 lens

• Geekworm X1200 UPS

• 18650 batteries and charger (recommended)

• Basic hand tools

A full recommended components list with sourcing links is included to make setup straightforward.

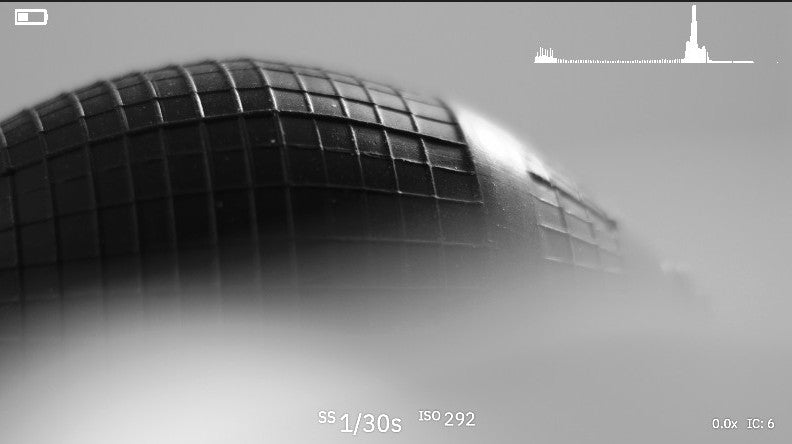

Camera Software – Key Features

The included software is the same platform used in the fully assembled camera.

Film Simulation Modes

Shoot with in-camera monochrome looks inspired by classic film stocks. The live preview reflects your selected look so composition and exposure feel intentional.

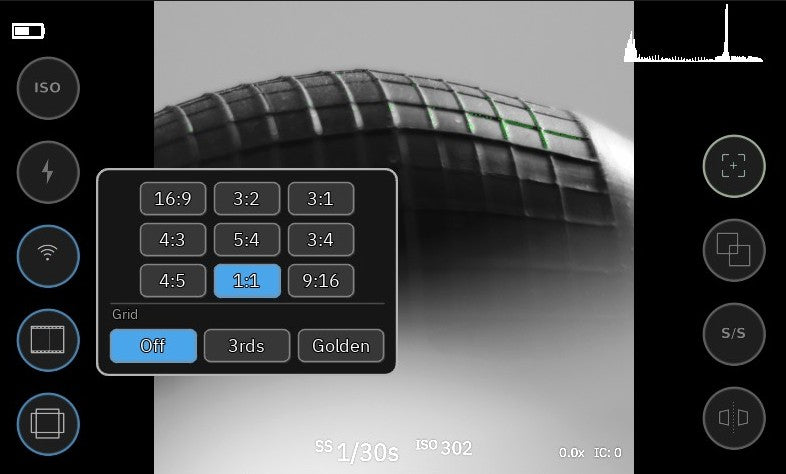

Aspect Ratio Selection

Compose using multiple aspect ratios directly in-camera, including 3:2, 4:3, 1:1, 4:5, 16:9, and more. Framing updates instantly before capture.

Focus Peaking

A live focus peaking overlay highlights areas of sharp focus, making manual focusing fast and intuitive.

Rangefinder Assist Mode

A dedicated focus assist mode inspired by classic rangefinder cameras. When enabled, the display simplifies to help you focus with precision and intention.

ISO Control

Choose between Auto ISO or fixed ISO values to maintain a consistent look or adapt to changing light.

Shutter Speed Control

Use Auto Shutter or manually select shutter speeds to freeze motion, introduce blur, or maintain consistent exposure.

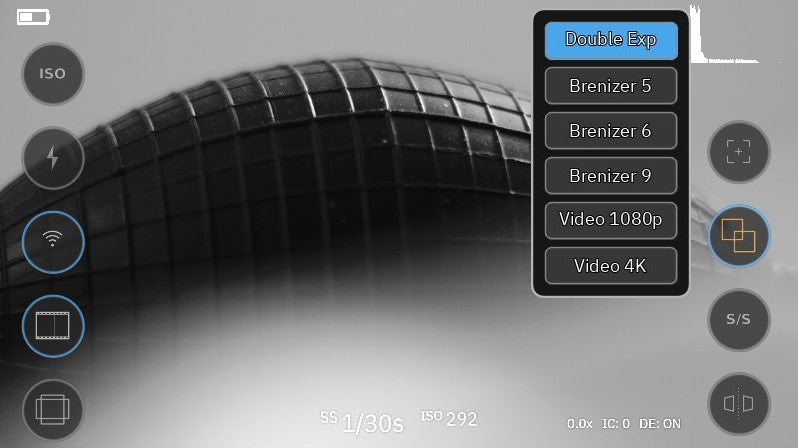

Double Exposure Mode

Create layered images directly in-camera. Capture the first exposure, then compose the second using a live overlay before saving the combined image.

RAW + JPG Capture

Every photo can be saved as both a processed JPEG with your selected film look applied and a full-resolution RAW (DNG) file for post-processing flexibility.

Features You’ll Unlock

• True monochrome capture with increased sharpness and detail

• Full-spectrum imaging for visible and infrared exploration

• Modular hardware design for upgrades and experimentation

• Hackable software platform that grows with your skills

• A hands-on understanding of how a digital camera really works

Who This Is For

• DIY builders and electronics hobbyists

• Photographers who want a customizable creative tool

• Artists exploring monochrome and infrared aesthetics

• Students and educators building imaging projects

• Anyone curious about cameras from the inside out

Licensing Terms

By purchasing and downloading this pack, you agree to the following:

• Files and software are licensed for personal, non-commercial use only

• You may modify the files and software for your own projects

• You may not sell, redistribute, or upload the files publicly

• You may not manufacture or sell cameras or components derived from this design

These terms ensure the project remains sustainable while still encouraging creativity and learning.

Sample Images (C-Mount TV Lenses)

Want to see what the IMX585 monochrome sensor looks like in real-world use?

This gallery features sample images captured with vintage C-mount TV lenses, showcasing the character, contrast, and sharpness you can expect from this sensor when paired with classic optics.

These examples highlight:

• true monochrome rendering (no Bayer filter)

• edge character and vignetting from C-mount glass

• tonal response in high-contrast scenes

• the natural, film-like look produced by simple lenses

• built in grainy film simulations

View sample images: https://drive.google.com/drive/folders/1pd-zxvWuhZ6wUxjeO-zhH7MobAVxBeBf?usp=sharing
